12 Conveyor system

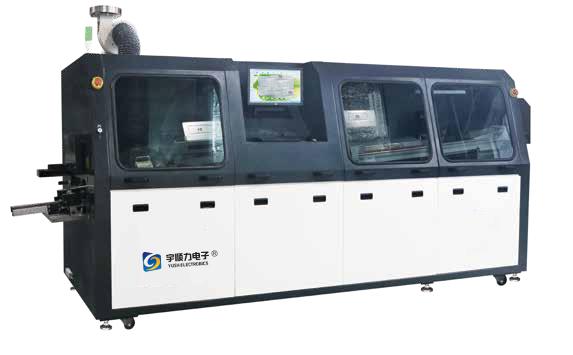

Model No.
YSL-350SS
Dimension: L*W*H(mm)
4350*1422*1750
Weight
Approx.1600kg
Power Supply
3PH 380V 50HZ
Start up Power
33KW
Normal Running Power
8KW
Control System
PC+PLC
Spraying movement
Step motor
Spraying Pressure
0.2Mpa~0.4Mpa
Flux Flow Control
Option
Auto Flux Filling
Standard
Exhausting
Top exhaust
Exhausting Pipe Diameter(mm)
Φ250
Exhaust fan power
750W
Preheating Mode
convection/IR emitter
Temperature Control Mode
PID
Preheating Zone Quantity
3
Preheating Zone Length(mm)
1800
Preheating Temperature Range
Room temperature~200℃
Warm-up Time(min)
Approx.12min(setting: 150℃)
Width(mm)
50~350
PCB Conveying Direction
L→R( Option:R→L)
Conveying Speed(mm/min)
500~1800
Conveying Height(mm)
750±20
Available Component Height(mm)
Top120 Option:240 Bottom15
Conveying Speed Control Mode
Closed loop stepless speed regulation by inverter
Finger
Spring Pressing Finger;D-40 Type Finger;Double-hook Finger;Heavy type double hook finger(Options)
Conveying Angle
4~7°
Solder Pot Type
Mechanical
Solder Pot Material
Casting Iron
Wave Height Adjustment
PC digital Control
Cooling type
Air Cooling Option: Water cooling
Solder Pot Heating Power
13.5KW
Max Solder Pot Temperature
300℃
Solder Pot Capacity
Approx.480kg
Wave Driving Power
180W*2 3PH 220 VAC
Solder Pot Warm-up Time
Approx.150min(setting: 250℃)
Temperature Control Mode
PID
Finger Cleaning System
Brush
