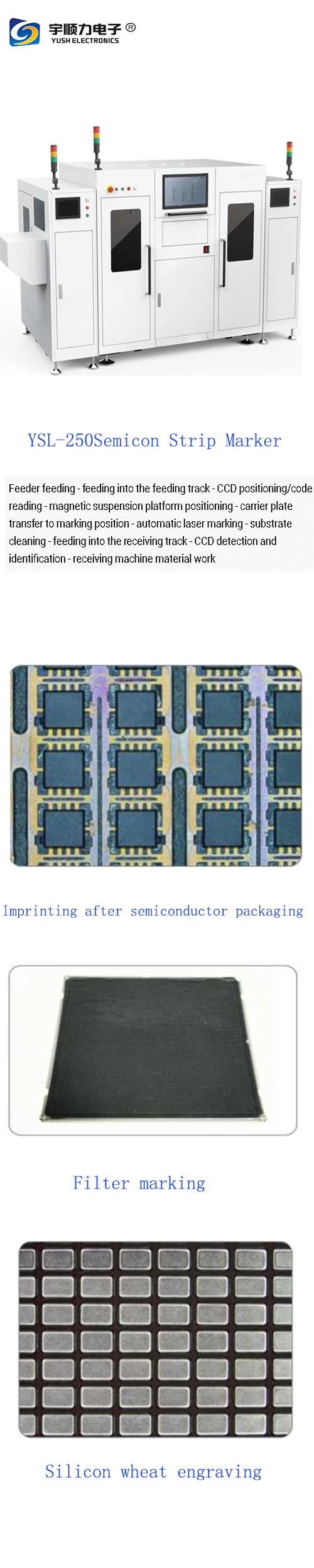

Laser Marking Machine Semicon Strip Marker-YSL-250-Laser Marking Machine Semicon Strip Marker-YSL-250 Manufacturers, Suppliers and Exporters on vcutpcbdepaneling.com

在线咨询
Click Refresh Verification Code

Description

YSL-250-

Model

YSL-250 System

Repeat Positioning Accuracy

±10μm

Positioning System

MARK Positioning

Code Detection System

CCD Online Detection

Minimum size of product

60*40mm

Maximum size of product

300-130mm

Passing height

<25mm

Anti warping pressing plate system

Support(Upperand Lower Splint)

Transfer direction

L-R

Track Width Adjustment

Automaticity

Operation mode

Single laser head, double laser head

Laser object/type

Character

English Uppercase lowercase.Figure,KatakanaChinese Characters SymbolUser Save Text (Up to 50 Types)

Bar code

CODE39CODE128ITFNW-7JAN(EAN)/UPC

QR code

QR Code x Micro QR Code s IQR Code s Data Matrix x GS1 Data Matrix

Graphic Data

VEC*4DXFBMPHPGLJPEGAlEPS

Smoke Treatment method

Automatic Smoke Purification System

Software

Software Interface

Chinese and English optimization interface

Poka-yoke Function

Automatic identification of PCB reverse/reverse/wrong materials

Selective Printing

Dentify BAD MARK ,do not perform well,antomatically skip

Barcode data source

SHOPFLOW,MES,IMS,PMS,DatabaseUSB flash diskThis machine sets the bar code rule/ figureTime serial number

System Connection Function

Can connect SHOPFLOW,MES,IMS,PMS,Mapping,EAP and other management systems,Fully automated production

Database

Each Model can be archived,directly tunde when generated again

Engraving Angle

0-360°

Others

Voltage

220V50/60Hz

Gas source

>0.5MPa

Environmental Requirement

5~40°C ,30~80Rh

Safety Precautions

3.0KVA

Equipment Weight

1850kg

Equipment size

1700*1200*1600mm9L/W/H

Laser specification

Laser type

Flber

UV

GR

Laser wavelength

1064nm

355nm

532nm

Laser level

Class4

Class4

Class4

Laser power

20w/30W

3W/5W

10W

Laser spot diameter

0.07mm

0.04mm

0.06mm

Laser cooling mode

Air cooling

Water- cooling

Water- cooling

Laser Irradiation Range

150x130mm
