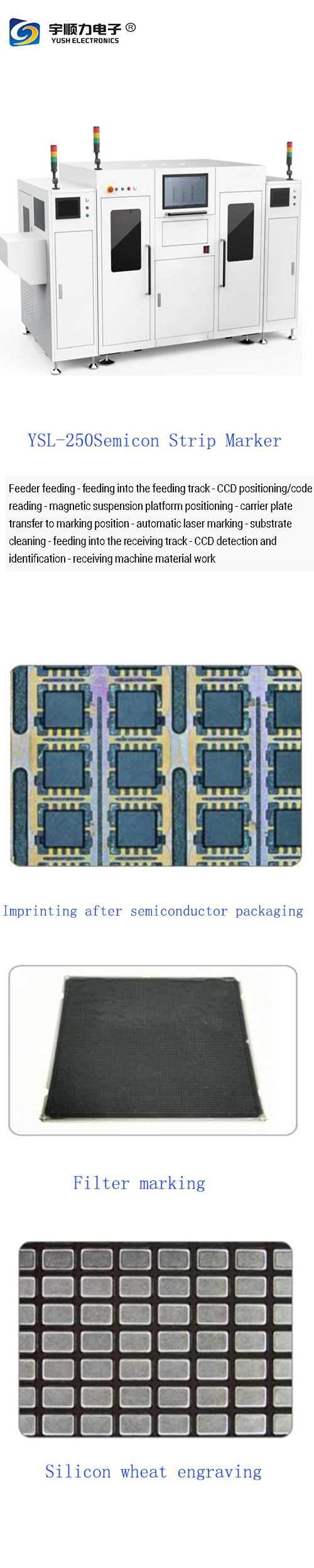

YSL-250- |
||||
|
Model |
YSL-250 System |
|||
|
Repeat Positioning Accuracy |
±10μm |
|||
|
Positioning System |
MARK Positioning |
|||
|
Code Detection System |
CCD Online Detection |
|||
|
Minimum size of product |
60*40mm |
|||
|
Maximum size of product |
300-130mm |
|||
|
Passing height |
<25mm |
|||
|
Anti warping pressing plate system |
Support(Upperand Lower Splint) |
|||
|
Transfer direction |
L-R |
|||
|
Track Width Adjustment |
Automaticity |
|||
|
Operation mode |
Single laser head, double laser head |
|||
|
Laser object/type |
Character |
English Uppercase lowercase.Figure,Katakana、Chinese Characters Symbol、User Save Text (Up to 50 Types) |
||
|
Bar code |
CODE39、CODE128、ITF、NW-7、JAN(EAN)/UPC |
|||
|
QR code |
QR Code x Micro QR Code s IQR Code s Data Matrix x GS1 Data Matrix |
|||
|
Graphic Data |
VEC*4、DXF、BMP、HPGL、JPEG、Al、EPS |
|||
|
Smoke Treatment method |
Automatic Smoke Purification System |
|||
|
Software |
||||
|
Software Interface |
Chinese and English optimization interface |
|||
|
Poka-yoke Function |
Automatic identification of PCB reverse/reverse/wrong materials |
|||
|
Selective Printing |
Dentify BAD MARK ,do not perform well,antomatically skip |
|||
|
Barcode data source |
SHOPFLOW,MES,IMS,PMS,Database、USB flash disk、This machine sets the bar code rule/ figure、Time serial number |
|||
|
System Connection Function |
Can connect SHOPFLOW,MES,IMS,PMS,Mapping,EAP and other management systems,Fully automated production |
|||
|
Database |
Each Model can be archived,directly tunde when generated again |
|||
|
Engraving Angle |
0-360° |
|||
|
Others |
||||
|
Voltage |
220V50/60Hz |
|||
|
Gas source |
>0.5MPa |
|||
|
Environmental Requirement |
5~40°C ,30~80Rh |
|||
|
Safety Precautions |
3.0KVA |
|||
|
Equipment Weight |
1850kg |
|||
|
Equipment size |
1700*1200*1600mm9（L/W/H） |
|||
|
Laser specification |
||||
|
Laser type |
Flber |
UV |
GR |
|
|
Laser wavelength |
1064nm |
355nm |
532nm |
|
|
Laser level |
Class4 |
Class4 |
Class4 |
|
|
Laser power |
20w/30W |
3W/5W |
10W |
|
|
Laser spot diameter |
0.07mm |
0.04mm |
0.06mm |
|
|
Laser cooling mode |
Air cooling |
Water- cooling |
Water- cooling |
|
|
Laser Irradiation Range |
150x130mm |
|||
